Pronounced Lithium-in-soil Anomalies
within Agboville and Rubino Licences, Côte d'Ivoire
New spodumene pegmatite occurrences also discovered in the Rubino licence
Highlights
- Impressive lithium-in-soil anomalies, extending over several kilometres, identified from Phase 2 and Phase 3 soil sampling completed over the Company's Rubino and Agboville exploration licences in Côte d'Ivoire.
- At Rubino, new Phase 3 results extend the lithium-in-soil anomalous zone identified from Phase 2 results (reported previously) to cover an increased area of approximately 6.0km by 2.5km, within which there are several distinct linear trends that warrant immediate ground follow-up evaluation.
- At Agboville, Phase 2 soil sampling results define a pronounced linear anomaly >5km in length as well as other anomalous linear features, one of which is associated with spodumene pegmatite float discovered by the Company's geologists.
- Additional spodumene pegmatite occurrences, returning high-grade lithium assays, discovered in rock float from geological mapping completed within the Rubino licence.
- The latest soil sampling and assay results further indicate the prospectivity of the Company's tenure in the mining-friendly jurisdiction of Côte d'Ivoire, which remains significantly underexplored for lithium.
- The Company is undertaking low-cost exploration of its Rubino and Agboville licences concurrently to the advancement of the Company's flagship
- A specialist corporate advisor has been engaged to commence a formal process to source funding options that are non-dilutive to the Company's shareholders to accelerate exploration of the Côte d'Ivoire licences.
Commenting,
"The latest results from the Company's ongoing exploration programmes across its 100%-owned Rubino and Agboville licences further underscore the prospectivity of its tenure in Côte d'Ivoire.
"Phase 2 and Phase 3 soil sampling results have delineated pronounced lithium-in-soil anomalies extending over several kilometres across the two licences, with several trends warranting further evaluation.
"At Rubino, the anomalous zone reported previously has been expanded by the latest results to an increased area of approximately 6.0km by 2.5km. Meanwhile, at Agboville, a pronounced linear anomaly >5km in length and several other anomalous linear features of interest have been identified.
"Through mapping and rock-chip sampling, the Company has also discovered several new spodumene pegmatite occurrences in rock float, in addition to the previously reported outcrop, within the Rubino licence. Further mapping has now commenced across both licences to support the evaluation of the anomalies identified in the Phase 2 and 3 soil results and to assist in defining follow-up auger drill programmes.
"The Company believes that its licences in Côte d'Ivoire demonstrate significant value potential through lithium exploration. To be undertaken alongside its advancement of its flagship
"We look forward to providing further updates in due course."
Figures and Tables referred to in this release can be viewed in the PDF version available via this link:
http://www.rns-pdf.londonstockexchange.com/rns/0000E_1-2025-10-20.pdf
Authorised for release by Amanda Harsas, Finance Director and Company Secretary,
This announcement contains inside information for the purposes of Article 7 of the Market Abuse Regulation (EU) 596/2014 as it forms part of
Location
The Agboville exploration licence (PR 0694) covers an area of 397km2 and is located in the departments of Agboville and Adzope in Côte d'Ivoire, while the adjacent Rubino exploration licence (PR 0695) covers an area of 374km2 in the department of Agboville (refer Figure 1). Both licences are 100%-owned by the Company's wholly-owned Ivorian subsidiary, Khaleesi Resources SARL ("Khaleesi"). The town of Agboville is situated only 80km north of

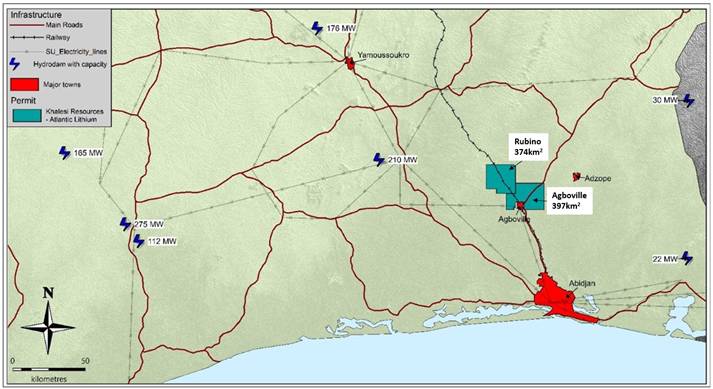

Figure 1: Location of the Agboville and Rubino licences held by the Company's wholly-owned subsidiary Khaleesi in Côte d'Ivoire and existing operational infrastructure.
Soil Sampling
Soil geochemical sampling was undertaken using 100m by 100m spaced grid over the most prospective areas identified by mapping and rock-chip sampling completed by the Company and also over historical mineral occurrences in both the Rubino and Agboville licence areas.
The soil sampling was completed in two sampling phases in each tenement; Phase 2 consisting of 3,235 sample sites (1,594 sites sampled at Agboville and 1,641 sites sampled at Rubino) and Phase 3 consisting of 1,512 sample sites (442 sites sampled at Agboville and 1,070 sites sampled at Rubino), the extent of which are shown in Figures 2 and 3. The total number of soil samples collected within the Rubino Phase 3 grid increased to 1,070 after the geological team was granted permission to sample a tract of agricultural land that had recently changed ownership (refer announcement of
The Company herein reports the results of Phase 3 soil sampling completed at Rubino and Phase 2 and Phase 3 soil sampling conducted at Agboville. The Rubino Phase 2 soil results were reported by the Company in the announcement dated
Newly-received Phase 3 lithium-in-soil results extend the anomalism 3.5km towards the NE from the previously announced Phase 2 soil grid, delineating a pronounced lithium-in-soil anomalous zone extending NE-SW continuously across the surveyed area, extending over an area of approximately 6.0km by 2.5km (refer Figure 2).
Within the anomalous zone, the results delineate a long NNE-SSW orientated linear anomaly, which could be associated with the interpreted lithological contact between metasediment and granodiorite; a similar lithological contact relationship that is observed in the distribution of anomalies from the Phase 2 soil grid. Similar, but less well defined, NNE-SSW to N-S trending soil anomalies are evident in the Rubino Phase 2 soil grid. These may be related to N-S to NNE-SSW orientated structural features concealed by the laterite cover and could also host pegmatite intrusions at depth. Several of the distinct NNE-SSW, N-S and NE-SW linear trends identified in the anomalous zone from the Phase 2 and Phase 3 soil results warrant immediate ground follow-up and ultimately sub-surface evaluation by the exploration team, as outlined in the '

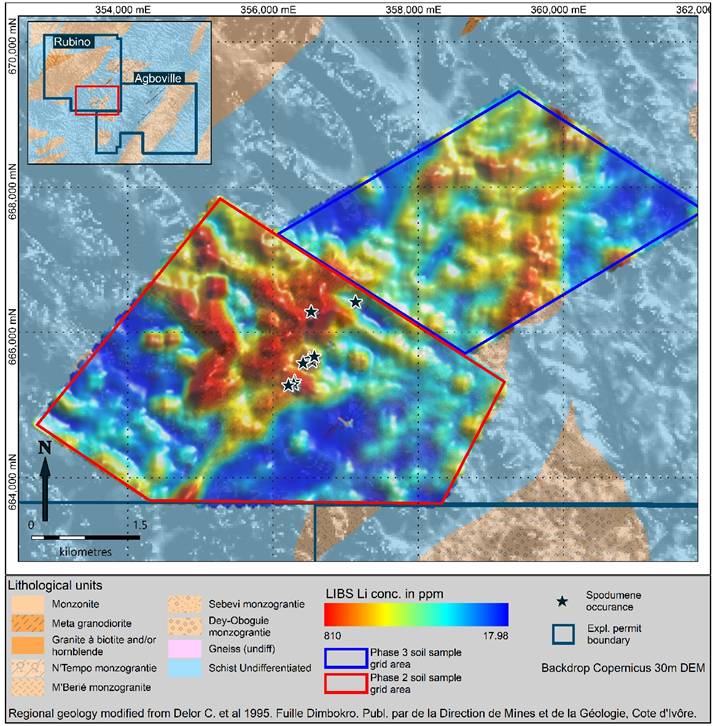

Figure 2: Consolidated Rubino Phase 2 and Phase 3 Li (ppm) in soil grid results with spodumene pegmatite discovery sites. Pronounced anomalies are defined by lithium values between 200ppm and a peak value of 806ppm, with values below 85ppm considered a background response and related to the country rock. Refer to Figure 4 for spodumene pegmatite occurrences and associated lithia values.
Agboville Licence
The lithium-in-soil results from the Phase 2 soil grid define a pronounced linear anomaly >5km in length trending NE-SW, which follows the interpreted contact between metasediments to the NW and granodiorite intrusive to the SE (refer Figure 3). Other less well-defined anomalous linear features are developed over the granodiorite, one of which is associated with spodumene pegmatite float discovered by the mapping team, as reported previously (refer announcement of
The NE-SW-orientated lithological contacts in both the Rubino and Agboville licences follow the dominant regional tectonic trend in the Birimian of this part of

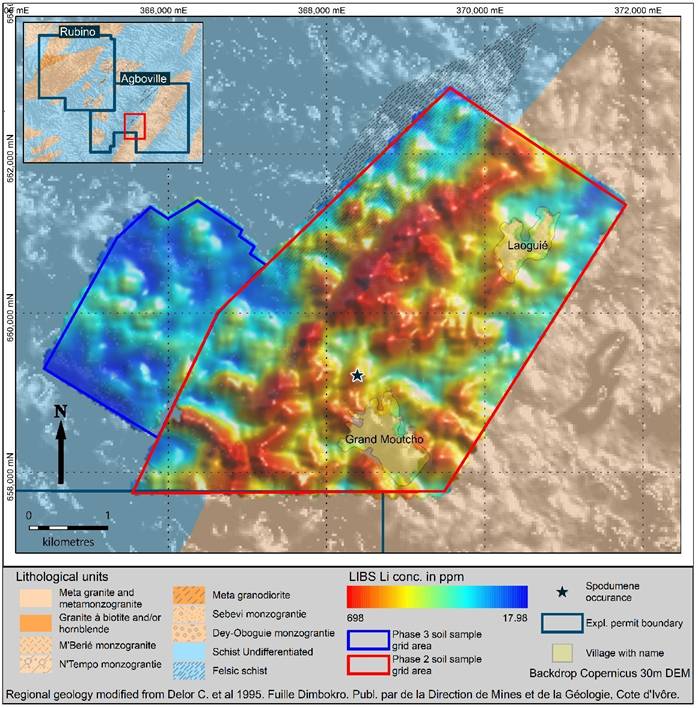

Figure 3: Agboville Phase 2 and 3 Li (ppm) in soil grid results. Prominent lithium soil anomalies are defined by values above 200ppm and a peak value of 698ppm, and values below 85ppm considered a background response associated with regional country rock.
Mapping and rock-chip sampling
Additional geological mapping undertaken by the Company's geologists, continued along reconnaissance traverses and in support of soil sampling and in ground truthing Rubino Phase 2 soil anomalies, has discovered several additional spodumene pegmatite occurrences in the Rubino licence as rock float, with spodumene visually observed in hand specimen despite varying degrees of weathering exhibited.
Rock-chip samples were collected during mapping and submitted for assay. The elevated assay values of lithium and other elements from these pegmatite rock-chip samples confirm the Company's visual spodumene observations and the prospectivity of the licences (refer Figure 4 and Table 1). Not all pegmatite samples sent for assay returned anomalous assay results. Spodumene has a propensity to degrade in the tropical weathering environment with the lithium leaching out of the mineral even in weak to moderately weathered pegmatite, so weathered visually observed spodumene will not always have corresponding high lithium values in rock-chip assay results.

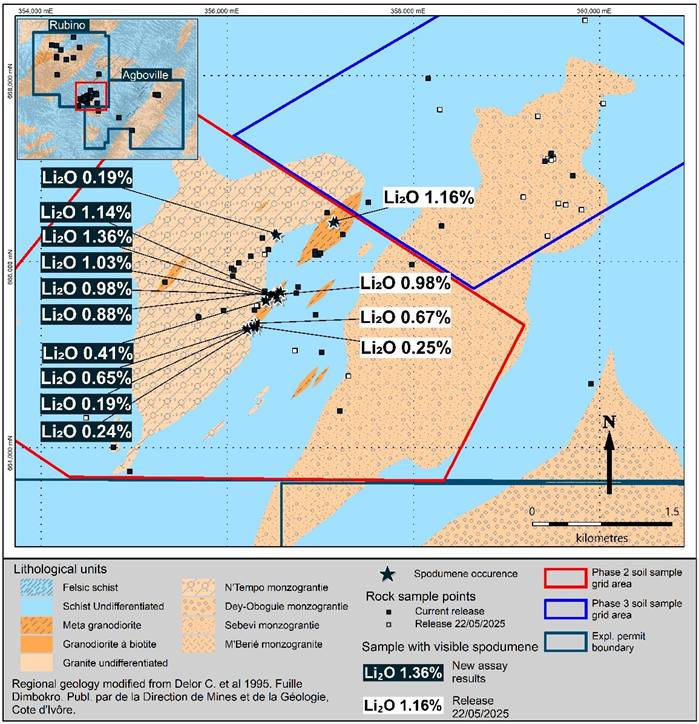

Figure 4: Map showing consolidated spodumene pegmatite occurrences within the Rubino licence with associated lithia values from rock-chip assays. Extent of recent Phase 2 and 3 soil sampling grids are also shown.

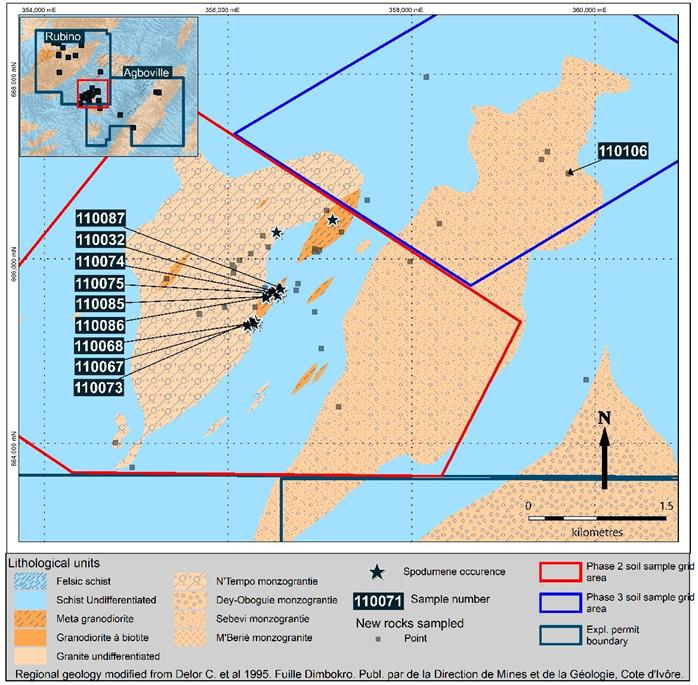

Table 1: Highlight rock-chip assay results (values >0.2 Li2O%, sorted highest to lowest by Li2O%) from the Rubino licence. Results <0.2 Li2O% are included in Appendix 1 and a geological map of the licences with rock-chip sample locations marked is included in Appendix 2.
Sample ID |
Permit ID |
Easting |
Northing |
Be_ppm |
Cs_ppm |
Ga_ppm |
Hf_ppm |
K_pct |
Li_ppm |
Li2O_% |
Nb_ppm |
Sn_ppm |
Ta_ppm |
110074 |
PR-695 |
356490 |
665634 |
118.78 |
62.26 |
33.39 |
1.53 |
1.9059 |
6300 |
1.36 |
97.6 |
0.2 |
79.28 |
110086 |
PR-695 |
356548 |
665612 |
126.45 |
75.54 |
35.04 |
1.95 |
3.6311 |
5300 |
1.14 |
91.94 |
0.2 |
60.51 |
110075 |
PR-695 |
356485 |
665629 |
121.22 |
68.2 |
28.39 |
1.07 |
2.2809 |
4762.1 |
1.03 |
77.56 |
0.2 |
38.36 |
110032 |
PR-695 |
356506 |
665644 |
216.79 |
92.8 |
26.44 |
1.12 |
4.0321 |
4556.7 |
0.98 |
53.64 |
0.2 |
31.41 |
110087 |
PR-695 |
356577 |
665683 |
119.79 |
46.63 |
30.8 |
2 |
2.1504 |
4093.6 |
0.88 |
121.27 |
0.2 |
52.78 |
110067 |
PR-695 |
356219 |
665285 |
172.51 |
47.26 |
28.88 |
4.56 |
3.3442 |
3041.5 |
0.65 |
35.74 |
0.3 |
17.77 |
110085 |
PR-695 |
356419 |
665590 |
131.03 |
86.99 |
32.06 |
2.76 |
3.696 |
1886.9 |
0.41 |
82 |
0.2 |
72.89 |
110073 |
PR-695 |
356281 |
665342 |
55.01 |
112.07 |
25.84 |
3.79 |
3.7214 |
1560 |
0.34 |
28.25 |
0.9 |
17.53 |
110106 |
PR-695 |
359709 |
666926 |
5.09 |
69.91 |
42.53 |
3.87 |
4.8099 |
1344.6 |
0.29 |
10.13 |
7 |
0.59 |
110068 |
PR-695 |
356294 |
665308 |
126.4 |
83.52 |
21.47 |
2.74 |
2.878 |
1094 |
0.24 |
61.28 |
0.1 |
36.95 |
NOTE: Grid references reported in projection UTM, WGS84, Zone 30N.

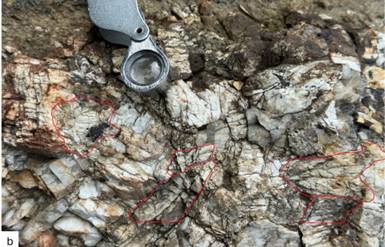

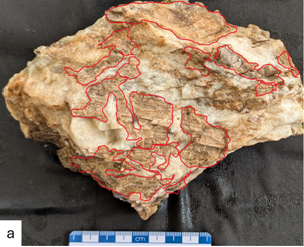

Figure 5: a) Photograph of a spodumene pegmatite hand specimen (Sample 110074) discovered in the Rubino exploration licence by the Company's geologists. The photograph shows the broken surface of spodumene pegmatite float grab sample with spodumene crystals 10mm to 30mm in length (outlined in red), estimated to be 25-30% of the surface area of the rock sample. b) Photograph of a spodumene pegmatite hand specimen (Sample 100192) discovered in the Agboville exploration licence by the Company's geologists - previously reported (refer announcement of
NOTE: Visual estimates of mineral abundance should never be considered a proxy or substitute for laboratory analyses where concentrations or grades are the factor of principal economic interest. Visual estimates also potentially provide no information regarding impurities or deleterious physical properties relevant to valuations.
The Company has commenced further mapping across both the Rubino and Agboville licences to continue the evaluation of the anomalies identified in the Phase 2 and 3 soil results. This additional mapping will assist in defining follow-up auger drill programmes to map the source of the anomalies below the laterite at surface, with the intention to define potential reverse circulation and diamond drill targets.
Further, Phase 4 soil sampling across both licences, extending outwards of the Phase 2 and Phase 3 soil sampling programme and across additional prospective areas, is also expected to be planned.
The Company has engaged a specialist corporate advisor to commence a formal process to source funding options to accelerate exploration activities across the Côte d'Ivoire licences. This process is focused on minority, project-level investment or partnerships that offer funding that is non-dilutive to Atlantic Lithium's existing shareholders.
JORC Table 1, Section 1 (Sampling Techniques and Data) and Section 2 (Reporting of Exploration Results) are included in Appendix 4.
Competent Persons
Information in this announcement relating to the exploration results is based on data reviewed by Mr
For any further information, please contact:
Amanda Harsas (Finance Director and Company Secretary)
|
||||
|
||||
|
Tel: +61 2 8072 0640
|
|||
Nominated Adviser Tel: +44 (0)20 3470 0470 |
Tel: +44 (0)20 3004 9512
|
Financial Adviser:
Corporate Broking: Tel: +44 (0) 20 7523 4500 |
|
|
Notes to Editors:
About Atlantic Lithium
Atlantic Lithium is an AIM, ASX and GSE-listed lithium company advancing its flagship project, the
The Company published a Definitive Feasibility Study in respect of the Project in
Atlantic Lithium holds a portfolio of lithium projects within 509km2 and 771km2 of granted and under-application tenure across
APPENDIX 1
Rock-chip assay results from the Rubino licence.
Sample ID |
Permit ID |
Easting |
Northing |
Be_ppm |
Cs_ppm |
Ga_ppm |
Hf_ppm |
K_pct |
Li_ppm |
Li2O_% |
Nb_ppm |
Sn_ppm |
Ta_ppm |
110050 |
PR-694 |
375964 |
666844 |
11.51 |
68.77 |
24.65 |
0.91 |
5.0525 |
100.5 |
0.02 |
12.27 |
0.3 |
1.99 |
110051 |
PR-694 |
376025 |
666708 |
57.93 |
74.56 |
22.13 |
1.1 |
5.6341 |
485.3 |
0.1 |
20.12 |
0.4 |
5.23 |
110048 |
PR-694 |
365662 |
660732 |
7.01 |
16.76 |
23.7 |
2.81 |
3.2535 |
165.7 |
0.04 |
9.04 |
0.8 |
1.35 |
110049 |
PR-694 |
375314 |
666930 |
1.71 |
2.89 |
20.23 |
0.52 |
4.4254 |
37.4 |
0.01 |
4.4 |
1.7 |
0.27 |
110108 |
PR-694 |
369104 |
657323 |
0.72 |
14.52 |
14.75 |
0.08 |
10 |
34 |
0.01 |
0.24 |
0.2 |
0.08 |
110109 |
PR-694 |
360249 |
662593 |
5.36 |
33.76 |
27.93 |
2.94 |
4.3094 |
245.6 |
0.05 |
9.38 |
1.1 |
1.48 |
110121 |
PR-694 |
375314 |
666934 |
2.81 |
7.47 |
21.56 |
0.37 |
5.1396 |
35.6 |
0.01 |
4.65 |
1.3 |
0.44 |
110122 |
PR-694 |
375965 |
666844 |
4.44 |
43.94 |
28.98 |
0.85 |
4.2772 |
127.2 |
0.03 |
15.5 |
0.4 |
2.33 |
110052 |
PR-695 |
356506 |
665644 |
7.4 |
36.68 |
29.29 |
2.67 |
3.7032 |
428.4 |
0.09 |
12.41 |
1.2 |
2.05 |
110032 |
PR-695 |
356506 |
665644 |
216.79 |
92.8 |
26.44 |
1.12 |
4.0321 |
4556.7 |
0.98 |
53.64 |
0.2 |
31.41 |
110055 |
PR-695 |
355961 |
665474 |
6.44 |
39.65 |
28.39 |
2.55 |
3.7186 |
345.4 |
0.07 |
11.87 |
1.2 |
1.91 |
110057 |
PR-695 |
356250 |
666056 |
7.59 |
46.35 |
27.86 |
1.9 |
3.4981 |
396 |
0.09 |
13.14 |
0.7 |
2.6 |
110058 |
PR-695 |
356376 |
666254 |
1036.83 |
127.49 |
17.79 |
0.63 |
4.8659 |
308.5 |
0.07 |
38.46 |
0.2 |
95.71 |
110053 |
PR-695 |
355685 |
665406 |
4.01 |
75.59 |
21.82 |
2.84 |
3.5114 |
457 |
0.1 |
5.19 |
1.2 |
0.71 |
110054 |
PR-695 |
355690 |
665399 |
5.62 |
35.94 |
27.3 |
2.37 |
3.6397 |
354 |
0.08 |
10.48 |
1.2 |
1.5 |
110110 |
PR-695 |
356060 |
665847 |
15.64 |
93.29 |
26.37 |
2.38 |
3.3377 |
419.9 |
0.09 |
16.61 |
0.9 |
11.36 |
110059 |
PR-695 |
355331 |
665781 |
7.44 |
55.73 |
27.56 |
2.26 |
3.7476 |
401.2 |
0.09 |
12.74 |
0.8 |
2.86 |
110060 |
PR-695 |
354952 |
663743 |
7 |
30.42 |
26.95 |
2.44 |
3.7513 |
415.6 |
0.09 |
11.55 |
1.2 |
2.02 |
110061 |
PR-695 |
354774 |
664005 |
168.65 |
67.69 |
27.53 |
2.78 |
3.8126 |
118.1 |
0.03 |
28 |
0.2 |
15.83 |
110062 |
PR-695 |
357071 |
666524 |
0.71 |
0.36 |
0.56 |
0.025 |
0.0388 |
20.9 |
0 |
0.47 |
0.1 |
0.15 |
110063 |
PR-695 |
357175 |
666410 |
1.06 |
12.98 |
6.32 |
0.025 |
0.3831 |
32.8 |
0.01 |
4.67 |
0.1 |
1.81 |
110064 |
PR-695 |
357238 |
666290 |
10.85 |
33.91 |
28.17 |
2.96 |
3.6738 |
101 |
0.02 |
12.52 |
0.2 |
45.61 |
110065 |
PR-695 |
357515 |
666636 |
0.27 |
0.22 |
1.28 |
0.025 |
0.0149 |
19.1 |
0 |
0.09 |
0.1 |
0.06 |
110071 |
PR-695 |
356231 |
665295 |
171.06 |
53.54 |
23.98 |
3.26 |
4.03 |
533.2 |
0.11 |
29.71 |
0.1 |
11.88 |
110077 |
PR-695 |
357013 |
665027 |
1.77 |
3.89 |
28.54 |
3.7 |
2.8523 |
39.1 |
0.01 |
7.89 |
1.7 |
0.6 |
110078 |
PR-695 |
356294 |
665477 |
25.94 |
45.2 |
31.38 |
1.77 |
4.0134 |
313.1 |
0.07 |
16.08 |
0.5 |
2.89 |
110079 |
PR-695 |
356762 |
665730 |
2.45 |
41.35 |
15.53 |
0.025 |
1.4251 |
144.1 |
0.03 |
7.87 |
0.5 |
2.46 |
110080 |
PR-695 |
356743 |
665659 |
0.28 |
0.37 |
0.98 |
0.025 |
0.0311 |
20.3 |
0 |
0.18 |
0.05 |
0.03 |
110095 |
PR-695 |
356533 |
666298 |
89.94 |
80.37 |
31.99 |
3.46 |
2.2682 |
887.4 |
0.19 |
61.96 |
0.4 |
30.47 |
110096 |
PR-695 |
356068 |
665908 |
74.1 |
60.87 |
5.73 |
0.41 |
1.7469 |
51.5 |
0.01 |
3.21 |
0.05 |
9.2 |
110072 |
PR-695 |
356226 |
665283 |
89.86 |
40.78 |
28.58 |
2.66 |
3.1935 |
695.1 |
0.15 |
17.84 |
0.3 |
4.63 |
110073 |
PR-695 |
356281 |
665342 |
55.01 |
112.07 |
25.84 |
3.79 |
3.7214 |
1560 |
0.34 |
28.25 |
0.9 |
17.53 |
110067 |
PR-695 |
356219 |
665285 |
172.51 |
47.26 |
28.88 |
4.56 |
3.3442 |
3041.5 |
0.65 |
35.74 |
0.3 |
17.77 |
110068 |
PR-695 |
356294 |
665308 |
126.4 |
83.52 |
21.47 |
2.74 |
2.878 |
1094 |
0.24 |
61.28 |
0.1 |
36.95 |
110069 |
PR-695 |
356289 |
665311 |
155.09 |
76.97 |
27.11 |
2.97 |
1.8366 |
871.1 |
0.19 |
68.81 |
0.1 |
35.85 |
110070 |
PR-695 |
356279 |
665341 |
77.01 |
77.74 |
24.81 |
2.03 |
2.6187 |
458.8 |
0.1 |
22.84 |
0.3 |
9.85 |
110074 |
PR-695 |
356490 |
665634 |
118.78 |
62.26 |
33.39 |
1.53 |
1.9059 |
6300 |
1.36 |
97.6 |
0.2 |
79.28 |
110075 |
PR-695 |
356485 |
665629 |
121.22 |
68.2 |
28.39 |
1.07 |
2.2809 |
4762.1 |
1.03 |
77.56 |
0.2 |
38.36 |
110081 |
PR-695 |
356486 |
665630 |
9.23 |
104.06 |
25.01 |
2.89 |
3.6619 |
625.4 |
0.13 |
10.31 |
1.2 |
5.15 |
110082 |
PR-695 |
356491 |
665633 |
0.09 |
0.21 |
0.17 |
0.025 |
0.0096 |
33.2 |
0.01 |
0.09 |
0.05 |
0.06 |
110083 |
PR-695 |
356438 |
665574 |
6.27 |
17.3 |
28.47 |
1.74 |
3.0936 |
145.2 |
0.03 |
11.22 |
0.3 |
2.77 |
110084 |
PR-695 |
356402 |
665682 |
71.43 |
26.84 |
24.85 |
1.79 |
3.2069 |
159.6 |
0.03 |
14.63 |
0.4 |
8.7 |
110085 |
PR-695 |
356419 |
665590 |
131.03 |
86.99 |
32.06 |
2.76 |
3.696 |
1886.9 |
0.41 |
82 |
0.2 |
72.89 |
110089 |
PR-695 |
356945 |
665427 |
2.35 |
1.02 |
18.12 |
0.08 |
0.0487 |
135.3 |
0.03 |
0.69 |
0.4 |
0.72 |
110090 |
PR-695 |
356440 |
666128 |
54.24 |
59.18 |
26.25 |
1.68 |
3.1851 |
285.5 |
0.06 |
11.57 |
0.4 |
5.04 |
110091 |
PR-695 |
356944 |
666110 |
1.43 |
20.64 |
13.63 |
0.025 |
0.8485 |
60.8 |
0.01 |
7.66 |
0.3 |
3.26 |
110092 |
PR-695 |
356979 |
666076 |
6.56 |
154.86 |
67.23 |
0.025 |
4.0247 |
241.1 |
0.05 |
46.04 |
0.7 |
20.8 |
110093 |
PR-695 |
356945 |
666074 |
2.86 |
58.09 |
27.24 |
0.025 |
1.6564 |
103 |
0.02 |
17.5 |
0.3 |
7.61 |
110094 |
PR-695 |
356999 |
666093 |
4.93 |
95.59 |
49.01 |
0.025 |
3.0891 |
188 |
0.04 |
29.14 |
0.5 |
12.66 |
110102 |
PR-695 |
357980 |
665970 |
3.1 |
6.34 |
25.41 |
3.68 |
4.3631 |
100.1 |
0.02 |
3.41 |
1.5 |
0.46 |
110103 |
PR-695 |
356044 |
665931 |
140.23 |
72.29 |
28.58 |
2.12 |
3.651 |
329 |
0.07 |
27.9 |
0.5 |
25.18 |
110097 |
PR-695 |
358301 |
666382 |
69.1 |
44.45 |
29.62 |
3.93 |
3.9723 |
144 |
0.03 |
12.13 |
1.5 |
4.8 |
110098 |
PR-695 |
356125 |
665987 |
7.3 |
52.83 |
27.64 |
2.09 |
3.7883 |
287.2 |
0.06 |
18.31 |
0.5 |
7.16 |
110100 |
PR-695 |
359412 |
667078 |
42.95 |
140.84 |
27.95 |
2.5 |
3.7014 |
265.5 |
0.06 |
13.82 |
0.6 |
19.2 |
110101 |
PR-695 |
359479 |
667162 |
3.69 |
12.92 |
5.93 |
0.29 |
1.7366 |
86.4 |
0.02 |
2.46 |
0.2 |
1.29 |
110076 |
PR-695 |
357207 |
664396 |
3.15 |
7.68 |
25.91 |
3.54 |
4.2478 |
109.3 |
0.02 |
3.5 |
1.5 |
0.43 |
110119 |
PR-695 |
349063 |
676940 |
3.71 |
13.16 |
22.03 |
1.18 |
3.769 |
238.7 |
0.05 |
5.61 |
2 |
0.72 |
110115 |
PR-695 |
349060 |
676940 |
117.15 |
39.8 |
26.79 |
1 |
3.6034 |
156.3 |
0.03 |
16.34 |
3 |
3.82 |
110116 |
PR-695 |
349137 |
676595 |
201.84 |
202.6 |
30.4 |
2.42 |
5.5315 |
156 |
0.03 |
32.95 |
3.1 |
29.52 |
110111 |
PR-695 |
360369 |
672251 |
1.31 |
0.17 |
25.14 |
0.47 |
0.0815 |
11.4 |
0 |
0.21 |
0.7 |
0.05 |
110117 |
PR-695 |
353535 |
676625 |
42.4 |
33.61 |
26.34 |
2.31 |
4.928 |
197.6 |
0.04 |
27.85 |
2.2 |
19.43 |
110118 |
PR-695 |
353570 |
676687 |
5.28 |
28.1 |
22.07 |
0.78 |
6.1471 |
105.9 |
0.02 |
3.83 |
0.9 |
0.83 |
110120 |
PR-695 |
355120 |
679318 |
5.1 |
13.08 |
20.33 |
1.43 |
7.4462 |
44.6 |
0.01 |
2.68 |
1.5 |
0.46 |
110123 |
PR-695 |
353519 |
682112 |
3.59 |
9.21 |
24.49 |
0.17 |
1.4613 |
218.8 |
0.05 |
20.54 |
1.8 |
2.42 |
110124 |
PR-695 |
349040 |
679911 |
3.44 |
28.24 |
37.5 |
11.66 |
1.7923 |
235.9 |
0.05 |
42.67 |
2.1 |
7.69 |
110125 |
PR-695 |
347811 |
680016 |
0.65 |
1.9 |
4.57 |
0.23 |
0.1861 |
32.9 |
0.01 |
3.5 |
0.5 |
0.36 |
110126 |
PR-695 |
349210 |
672087 |
102.99 |
42.07 |
23.8 |
2.47 |
6.188 |
93.2 |
0.02 |
14.5 |
1.2 |
11.08 |
110112 |
PR-695 |
351620 |
676207 |
0.46 |
2.46 |
5.32 |
0.15 |
0.2033 |
34.7 |
0.01 |
3.87 |
1 |
0.83 |
110113 |
PR-695 |
350146 |
678814 |
6.63 |
55.02 |
65.79 |
0.52 |
3.0704 |
235.1 |
0.05 |
74.11 |
8.2 |
13.94 |
110086 |
PR-695 |
356548 |
665612 |
126.45 |
75.54 |
35.04 |
1.95 |
3.6311 |
5300 |
1.14 |
91.94 |
0.2 |
60.51 |
110087 |
PR-695 |
356577 |
665683 |
119.79 |
46.63 |
30.8 |
2 |
2.1504 |
4093.6 |
0.88 |
121.27 |
0.2 |
52.78 |
110104 |
PR-695 |
358157 |
667968 |
0.47 |
1 |
1.59 |
0.025 |
0.0864 |
32.5 |
0.01 |
0.99 |
0.2 |
0.49 |
110107 |
PR-695 |
359903 |
664689 |
3.63 |
8.77 |
32.41 |
1.67 |
2.0914 |
168.9 |
0.04 |
17.31 |
2.3 |
6.48 |
110106 |
PR-695 |
359709 |
666926 |
5.09 |
69.91 |
42.53 |
3.87 |
4.8099 |
1344.6 |
0.29 |
10.13 |
7 |
0.59 |
110105 |
PR-695 |
359709 |
666922 |
50.94 |
129.83 |
25.17 |
2.14 |
4.5723 |
133.4 |
0.03 |
6.42 |
0.6 |
7.96 |
NOTE: Grid references reported in projection UTM, WGS84, Zone 30N.
APPENDIX 2
Geological map of the Rubino licence with rock-chip sample locations marked. Sample IDs are given where assay values >0.2% Li2O were returned, as reported in Table 1.
APPENDIX 3
Soil assay results (Li ppm >85 ppm, sorted highest to lowest) - Li values greater than 210 ppm are deemed extremely anomalous; values below 85ppm are considered background and are not reported in this announcement (calculated by means of cumulative probability statistics).
Sample_ID |
Easting |
Northing |
Li (ppm) |
|||
100671 |
366827 |
658221 |
698 |
|||
100797 |
367799 |
659728 |
644 |
|||
100986 |
368596 |
660404 |
637 |
|||
101342 |
369266 |
660810 |
429 |
|||
101084 |
368513 |
660456 |
416 |
|||
100515 |
367179 |
658107 |
403 |
|||
101085 |
368423 |
660509 |
377 |
|||
100697 |
366903 |
658045 |
369 |
|||
100425 |
367369 |
659051 |
368 |
|||
101188 |
369260 |
660688 |
366 |
|||
101622 |
369785 |
661425 |
348 |
|||
101043 |
368619 |
660627 |
341 |
|||
101591 |
369592 |
661311 |
339 |
|||
101042 |
368707 |
660576 |
335 |
|||
100575 |
367104 |
658275 |
329 |
|||
100205 |
368426 |
658017 |
327 |
|||
101005 |
368392 |
660181 |
319 |
|||
100881 |
368689 |
659634 |
308 |
|||
101015 |
368499 |
660348 |
307 |
|||
101017 |
368693 |
660470 |
303 |
|||
101018 |
368778 |
660410 |
302 |
|||
101006 |
368477 |
660130 |
301 |
|||
101016 |
368608 |
660519 |
299 |
|||
101206 |
369051 |
660467 |
294 |
|||
100895 |
368545 |
659960 |
293 |
|||
100949 |
368571 |
660185 |
292 |
|||
101186 |
369437 |
660577 |
290 |
|||
101505 |
369219 |
661077 |
290 |
|||
101004 |
368305 |
660235 |
286 |
|||
100610 |
366254 |
658679 |
284 |
|||
101143 |
368332 |
661290 |
278 |
|||
101658 |
369891 |
661488 |
274 |
|||
101082 |
368811 |
660746 |
273 |
|||
101346 |
368936 |
661032 |
265 |
|||
101263 |
369365 |
660032 |
264 |
|||
101229 |
369234 |
659637 |
264 |
|||
101483 |
369112 |
661024 |
263 |
|||
100514 |
367268 |
658059 |
261 |
|||
100887 |
368186 |
659957 |
259 |
|||
100673 |
366645 |
658317 |
249 |
|||
101192 |
368922 |
660906 |
248 |
|||
100897 |
368378 |
660070 |
247 |
|||
101657 |
369970 |
661428 |
245 |
|||
100391 |
367251 |
658775 |
244 |
|||
101531 |
369139 |
661238 |
243 |
|||
101012 |
368746 |
660183 |
242 |
|||
100645 |
366876 |
657826 |
241 |
|||
101529 |
369305 |
661131 |
239 |
|||
101714 |
370172 |
661650 |
239 |
|||
104074 |
359472 |
666741 |
237 |
|||
101011 |
368841 |
660132 |
234 |
|||
101067 |
368414 |
660405 |
232 |
|||
100608 |
366420 |
658595 |
231 |
|||
100896 |
368460 |
660017 |
230 |
|||
101331 |
368830 |
660853 |
229 |
|||
101344 |
369098 |
660923 |
229 |
|||
100490 |
367202 |
658332 |
229 |
|||
100947 |
368750 |
660076 |
227 |
|||
101867 |
370485 |
662043 |
225 |
|||
101347 |
368846 |
661073 |
223 |
|||
101548 |
369498 |
661251 |
221 |
|||
101589 |
369426 |
661420 |
220 |
|||
101439 |
370122 |
660378 |
219 |
|||
100607 |
366508 |
658547 |
219 |
|||
101341 |
369352 |
660747 |
217 |
|||
100454 |
367695 |
659565 |
217 |
|||
100910 |
368201 |
660069 |
216 |
|||
101121 |
368879 |
659748 |
214 |
|||
101146 |
368523 |
660572 |
214 |
|||
100582 |
367694 |
657895 |
213 |
|||
104023 |
359342 |
666362 |
213 |
|||
101503 |
369041 |
661192 |
212 |
|||
101289 |
368991 |
659911 |
211 |
|||
100579 |
367439 |
658057 |
210 |
|||
100230 |
367297 |
658387 |
207 |
|||
101329 |
368995 |
660749 |
207 |
|||
104178 |
359595 |
667020 |
207 |
|||
100952 |
368410 |
660292 |
205 |
|||
100397 |
367257 |
658888 |
204 |
|||
100898 |
368294 |
660123 |
204 |
|||
104128 |
359522 |
667189 |
204 |
|||
104676 |
359892 |
668974 |
204 |
|||
104272 |
360759 |
666989 |
202 |
|||
104073 |
359558 |
666699 |
200 |
|||
100951 |
368488 |
660240 |
199 |
|||
100544 |
367826 |
659119 |
198 |
|||
101768 |
370475 |
661930 |
197 |
|||
101547 |
369580 |
661196 |
197 |
|||
101461 |
369231 |
661305 |
197 |
|||
101279 |
369163 |
660638 |
197 |
|||
103710 |
356795 |
666921 |
197 |
|||
100605 |
366673 |
658433 |
195 |
|||
100270 |
369437 |
658201 |
195 |
|||
100985 |
368674 |
660353 |
195 |
|||
100424 |
367456 |
659003 |
194 |
|||
101484 |
369028 |
661077 |
194 |
|||
101264 |
369374 |
660145 |
193 |
|||
101066 |
368332 |
660457 |
191 |
|||
100807 |
367789 |
659620 |
190 |
|||
101670 |
370073 |
661595 |
189 |
|||
101580 |
369438 |
661532 |
189 |
|||
100504 |
368141 |
658679 |
189 |
|||
100371 |
367517 |
658720 |
188 |
|||
101039 |
368871 |
660466 |
188 |
|||
100267 |
369185 |
658363 |
186 |
|||
101644 |
369975 |
661543 |
185 |
|||
101530 |
369229 |
661187 |
185 |
|||
101345 |
369022 |
660976 |
185 |
|||
101343 |
369185 |
660859 |
185 |
|||
100474 |
367814 |
658175 |
185 |
|||
100888 |
368103 |
660008 |
184 |
|||
100502 |
367971 |
658788 |
184 |
|||
104175 |
359846 |
666869 |
184 |
|||
101014 |
368584 |
660297 |
183 |
|||
101110 |
368946 |
660303 |
183 |
|||
104538 |
358922 |
668282 |
183 |
|||
103711 |
356876 |
666867 |
183 |
|||
100477 |
368066 |
658018 |
182 |
|||
100999 |
368059 |
660398 |
182 |
|||
100698 |
366822 |
658102 |
181 |
|||
100372 |
367432 |
658782 |
181 |
|||
101763 |
370127 |
662149 |
181 |
|||
100899 |
368213 |
660176 |
180 |
|||
100505 |
368226 |
658626 |
180 |
|||
101109 |
368860 |
660356 |
180 |
|||
101694 |
370266 |
661710 |
180 |
|||
100471 |
369997 |
660105 |
179 |
|||
100879 |
368774 |
659581 |
179 |
|||
101869 |
370311 |
662156 |
178 |
|||
100347 |
367392 |
658445 |
178 |
|||
101191 |
369005 |
660850 |
178 |
|||
101302 |
370027 |
660318 |
178 |
|||
100418 |
368034 |
658516 |
178 |
|||
101764 |
370209 |
662110 |
178 |
|||
101340 |
369432 |
660698 |
178 |
|||
101620 |
369620 |
661534 |
177 |
|||
104043 |
359354 |
666463 |
177 |
|||
100495 |
367466 |
659115 |
176 |
|||
101170 |
369606 |
659758 |
176 |
|||
101571 |
369341 |
661474 |
175 |
|||
101780 |
370633 |
661719 |
174 |
|||
100388 |
367155 |
658714 |
174 |
|||
104311 |
359680 |
667799 |
174 |
|||
104288 |
359498 |
667802 |
174 |
|||
100690 |
366886 |
657938 |
173 |
|||
101590 |
369507 |
661365 |
173 |
|||
100519 |
367478 |
659223 |
172 |
|||
101592 |
369676 |
661257 |
172 |
|||
101577 |
369691 |
661368 |
172 |
|||
104226 |
359801 |
667251 |
172 |
|||
100913 |
367952 |
660229 |
171 |
|||
101226 |
368980 |
659804 |
170 |
|||
101207 |
369133 |
660413 |
169 |
|||
100599 |
369652 |
658538 |
169 |
|||
100469 |
366750 |
659111 |
168 |
|||
100597 |
369822 |
658430 |
168 |
|||
104540 |
359086 |
668185 |
167 |
|||
101579 |
369517 |
661473 |
166 |
|||
100945 |
369486 |
658643 |
165 |
|||
101496 |
368535 |
661515 |
165 |
|||
103983 |
359549 |
666576 |
165 |
|||
101041 |
368790 |
660521 |
164 |
|||
100322 |
368018 |
659231 |
164 |
|||
100373 |
367345 |
658832 |
164 |
|||
100243 |
368439 |
658131 |
164 |
|||
101098 |
368018 |
660895 |
163 |
|||
101621 |
369704 |
661480 |
163 |
|||
100459 |
368283 |
659177 |
163 |
|||
101227 |
369063 |
659750 |
163 |
|||
104551 |
358933 |
668396 |
163 |
|||
101003 |
368221 |
660289 |
162 |
|||
100849 |
368380 |
659238 |
162 |
|||
101336 |
368680 |
661188 |
162 |
|||
100998 |
367971 |
660452 |
162 |
|||
100462 |
368345 |
658902 |
161 |
|||
100410 |
367357 |
658943 |
161 |
|||
100944 |
369401 |
658700 |
161 |
|||
101517 |
370218 |
660435 |
161 |
|||
101519 |
370072 |
660648 |
160 |
|||
104176 |
359761 |
666912 |
160 |
|||
103673 |
356814 |
667153 |
160 |
|||
100783 |
368872 |
659635 |
159 |
|||
101092 |
367839 |
660892 |
159 |
|||
104519 |
360484 |
668593 |
159 |
|||
104044 |
359438 |
666416 |
158 |
|||
104273 |
360677 |
667044 |
158 |
|||
104677 |
359974 |
668917 |
157 |
|||
100493 |
367634 |
659003 |
156 |
|||
101193 |
368834 |
660962 |
156 |
|||
101195 |
369676 |
659593 |
155 |
|||
101576 |
369775 |
661313 |
155 |
|||
101479 |
369365 |
660863 |
155 |
|||
104539 |
359001 |
668236 |
155 |
|||
101672 |
369908 |
661704 |
154 |
|||
101332 |
368743 |
660909 |
154 |
|||
101546 |
369666 |
661145 |
154 |
|||
100513 |
367339 |
658008 |
154 |
|||
100554 |
367507 |
659443 |
154 |
|||
103714 |
357124 |
666707 |
154 |
|||
100260 |
367502 |
658613 |
153 |
|||
100545 |
367908 |
659068 |
153 |
|||
101671 |
369988 |
661651 |
153 |
|||
100403 |
366921 |
659102 |
153 |
|||
101460 |
369316 |
661250 |
152 |
|||
100909 |
368284 |
660012 |
152 |
|||
101623 |
369872 |
661373 |
152 |
|||
105227 |
358208 |
668279 |
152 |
|||
101138 |
368713 |
660684 |
151 |
|||
100208 |
368680 |
657855 |
151 |
|||
100866 |
368007 |
659945 |
150 |
|||
100713 |
369608 |
658927 |
149 |
|||
101482 |
369199 |
660970 |
148 |
|||
101624 |
369954 |
661317 |
148 |
|||
101224 |
369338 |
659810 |
148 |
|||
101871 |
370145 |
662265 |
148 |
|||
101083 |
368731 |
660797 |
148 |
|||
100399 |
367098 |
658997 |
148 |
|||
100330 |
367685 |
659451 |
148 |
|||
100346 |
367310 |
658500 |
147 |
|||
100912 |
368032 |
660177 |
147 |
|||
100468 |
368370 |
659125 |
147 |
|||
101185 |
369505 |
660526 |
147 |
|||
101481 |
369282 |
660917 |
147 |
|||
104045 |
359523 |
666358 |
147 |
|||
103949 |
359338 |
666242 |
147 |
|||
100249 |
369031 |
657752 |
146 |
|||
100413 |
367610 |
658777 |
146 |
|||
100274 |
369422 |
658092 |
146 |
|||
100668 |
367083 |
658050 |
146 |
|||
100470 |
366679 |
659143 |
146 |
|||
104155 |
359438 |
667244 |
146 |
|||
104047 |
359534 |
666468 |
146 |
|||
100924 |
369795 |
659045 |
145 |
|||
101278 |
369245 |
660583 |
145 |
|||
101147 |
368443 |
660624 |
145 |
|||
100426 |
367288 |
659106 |
145 |
|||
101693 |
370351 |
661657 |
144 |
|||
100674 |
366582 |
658374 |
144 |
|||
100711 |
369775 |
658813 |
144 |
|||
100509 |
367673 |
657789 |
144 |
|||
104255 |
359729 |
667416 |
144 |
|||
104745 |
358648 |
668228 |
144 |
|||
100751 |
369580 |
658704 |
143 |
|||
105215 |
358968 |
667900 |
143 |
|||
105239 |
358105 |
668102 |
143 |
|||
100348 |
367478 |
658391 |
142 |
|||
101574 |
369941 |
661207 |
142 |
|||
104317 |
359698 |
667916 |
142 |
|||
105228 |
358279 |
668113 |
142 |
|||
101659 |
369797 |
661530 |
141 |
|||
101099 |
368099 |
660834 |
141 |
|||
100326 |
367867 |
659454 |
141 |
|||
100904 |
367870 |
660397 |
141 |
|||
104657 |
360122 |
668588 |
141 |
|||
100207 |
368597 |
657910 |
140 |
|||
100731 |
366749 |
657796 |
140 |
|||
101009 |
368728 |
659964 |
139 |
|||
100685 |
366464 |
658196 |
138 |
|||
100273 |
369342 |
658146 |
138 |
|||
101292 |
369086 |
659965 |
138 |
|||
100518 |
366923 |
658277 |
138 |
|||
101044 |
368537 |
660687 |
137 |
|||
100223 |
367890 |
658008 |
137 |
|||
101119 |
368966 |
659692 |
137 |
|||
101528 |
369394 |
661082 |
137 |
|||
101151 |
368476 |
660960 |
137 |
|||
104586 |
358794 |
668836 |
137 |
|||
104312 |
359593 |
667853 |
137 |
|||
100689 |
366804 |
657996 |
136 |
|||
101117 |
369136 |
659583 |
136 |
|||
100813 |
369709 |
658981 |
136 |
|||
100606 |
366591 |
658487 |
136 |
|||
104099 |
359568 |
666801 |
136 |
|||
100609 |
366316 |
658650 |
135 |
|||
100492 |
367025 |
658440 |
135 |
|||
100586 |
368899 |
659040 |
135 |
|||
101214 |
369871 |
659708 |
135 |
|||
100463 |
368431 |
658852 |
134 |
|||
101010 |
368917 |
660083 |
134 |
|||
101459 |
369399 |
661197 |
134 |
|||
100398 |
367179 |
658943 |
134 |
|||
101695 |
370182 |
661766 |
134 |
|||
101215 |
369956 |
659653 |
134 |
|||
104296 |
360848 |
667049 |
134 |
|||
101124 |
368811 |
659912 |
133 |
|||
101222 |
369180 |
659919 |
133 |
|||
101625 |
370035 |
661263 |
133 |
|||
100730 |
366699 |
657843 |
133 |
|||
100206 |
368512 |
657966 |
133 |
|||
101179 |
370010 |
660206 |
133 |
|||
101276 |
369414 |
660477 |
133 |
|||
100494 |
367553 |
659062 |
133 |
|||
101136 |
368547 |
660795 |
133 |
|||
104686 |
360131 |
668693 |
133 |
|||
104684 |
360308 |
668582 |
133 |
|||
103690 |
357055 |
666876 |
133 |
|||
100325 |
367768 |
659386 |
132 |
|||
100386 |
366986 |
658826 |
132 |
|||
100738 |
366337 |
657818 |
132 |
|||
100460 |
368170 |
659008 |
132 |
|||
101213 |
369807 |
659771 |
132 |
|||
104070 |
359819 |
666530 |
132 |
|||
104310 |
359759 |
667749 |
132 |
|||
104653 |
359944 |
668584 |
132 |
|||
101781 |
370540 |
661769 |
131 |
|||
101140 |
368585 |
661129 |
131 |
|||
100512 |
367452 |
657954 |
131 |
|||
101203 |
368800 |
660627 |
131 |
|||
105211 |
358631 |
668121 |
131 |
|||
100367 |
367742 |
658341 |
130 |
|||
100527 |
368068 |
658844 |
130 |
|||
100580 |
367524 |
658005 |
130 |
|||
100948 |
368658 |
660131 |
130 |
|||
101286 |
369247 |
659750 |
130 |
|||
100782 |
368955 |
659580 |
130 |
|||
101230 |
369318 |
659588 |
130 |
|||
104207 |
359539 |
667302 |
130 |
|||
101697 |
370015 |
661873 |
129 |
|||
101161 |
368233 |
661229 |
129 |
|||
101456 |
369653 |
661031 |
129 |
|||
101311 |
370215 |
660306 |
129 |
|||
100908 |
368370 |
659956 |
129 |
|||
104204 |
359786 |
667143 |
129 |
|||
104145 |
358738 |
667453 |
129 |
|||
100953 |
368320 |
660347 |
128 |
|||
101007 |
368556 |
660073 |
128 |
|||
104659 |
359955 |
668694 |
128 |
|||
100996 |
367804 |
660558 |
127 |
|||
101241 |
370146 |
659765 |
127 |
|||
104125 |
359773 |
667028 |
127 |
|||
103878 |
359231 |
666186 |
127 |
|||
105229 |
358193 |
668168 |
127 |
|||
103745 |
358241 |
666117 |
127 |
|||
103798 |
358976 |
666228 |
127 |
|||
100863 |
368180 |
659848 |
126 |
|||
101225 |
369425 |
659766 |
126 |
|||
104319 |
359858 |
667806 |
126 |
|||
104534 |
358666 |
668456 |
126 |
|||
101199 |
368356 |
660680 |
125 |
|||
101125 |
368897 |
659860 |
124 |
|||
100878 |
368857 |
659525 |
124 |
|||
100271 |
369523 |
658147 |
124 |
|||
101767 |
370378 |
661992 |
124 |
|||
101747 |
370447 |
661714 |
124 |
|||
100812 |
369616 |
659037 |
124 |
|||
104171 |
358258 |
668001 |
124 |
|||
104134 |
359584 |
666911 |
124 |
|||
100578 |
367357 |
658112 |
123 |
|||
101868 |
370395 |
662107 |
123 |
|||
101309 |
368346 |
661403 |
123 |
|||
101078 |
369065 |
660581 |
123 |
|||
101669 |
370158 |
661544 |
123 |
|||
100592 |
369477 |
658535 |
122 |
|||
101504 |
369124 |
661138 |
122 |
|||
100317 |
368342 |
659025 |
122 |
|||
100412 |
367528 |
658835 |
122 |
|||
101523 |
369808 |
660811 |
122 |
|||
100300 |
369528 |
658257 |
122 |
|||
101723 |
370037 |
662095 |
122 |
|||
104536 |
358760 |
668400 |
122 |
|||
100485 |
367619 |
658060 |
121 |
|||
100868 |
367839 |
660057 |
121 |
|||
100591 |
369387 |
658589 |
121 |
|||
100590 |
369305 |
658639 |
121 |
|||
104604 |
359490 |
668523 |
121 |
|||
104546 |
359269 |
668187 |
121 |
|||
101243 |
369902 |
659911 |
120 |
|||
100709 |
369942 |
658709 |
120 |
|||
101013 |
368665 |
660242 |
120 |
|||
100889 |
368024 |
660066 |
120 |
|||
100269 |
369352 |
658257 |
120 |
|||
101532 |
369056 |
661300 |
120 |
|||
101643 |
369889 |
661577 |
119 |
|||
100259 |
367586 |
658561 |
119 |
|||
100263 |
367407 |
658556 |
119 |
|||
101870 |
370229 |
662207 |
118 |
|||
100496 |
367384 |
659167 |
118 |
|||
101782 |
370460 |
661828 |
118 |
|||
100324 |
367848 |
659337 |
118 |
|||
101743 |
370111 |
661929 |
118 |
|||
100244 |
368610 |
658021 |
118 |
|||
100729 |
366607 |
657861 |
118 |
|||
101552 |
369242 |
661417 |
118 |
|||
100497 |
367295 |
659219 |
118 |
|||
101715 |
370254 |
661599 |
118 |
|||
104576 |
359299 |
668402 |
118 |
|||
100585 |
368999 |
658983 |
117 |
|||
100688 |
366723 |
658048 |
117 |
|||
100686 |
366552 |
658153 |
117 |
|||
101866 |
370567 |
661993 |
117 |
|||
101578 |
369609 |
661421 |
117 |
|||
100411 |
367439 |
658888 |
117 |
|||
101081 |
368890 |
660697 |
117 |
|||
101255 |
369437 |
659866 |
117 |
|||
100648 |
366630 |
657996 |
117 |
|||
100646 |
366799 |
657874 |
117 |
|||
103774 |
357338 |
667052 |
117 |
|||
104212 |
359118 |
667563 |
117 |
|||
104285 |
359748 |
667633 |
117 |
|||
103712 |
356959 |
666813 |
117 |
|||
100667 |
367167 |
657994 |
116 |
|||
101045 |
368451 |
660739 |
116 |
|||
100467 |
368452 |
659069 |
116 |
|||
100806 |
367704 |
659672 |
116 |
|||
101257 |
369271 |
659974 |
116 |
|||
103941 |
358664 |
666674 |
116 |
|||
104291 |
359234 |
667850 |
116 |
|||
104046 |
359626 |
666427 |
116 |
|||
104096 |
359822 |
666642 |
116 |
|||
104554 |
358682 |
668560 |
116 |
|||
104567 |
359196 |
668350 |
116 |
|||
100946 |
368825 |
660021 |
115 |
|||
101216 |
370029 |
659596 |
115 |
|||
101593 |
369758 |
661197 |
115 |
|||
100903 |
367956 |
660342 |
115 |
|||
101524 |
369725 |
660858 |
115 |
|||
104961 |
365662 |
659918 |
115 |
|||
100279 |
369329 |
658035 |
114 |
|||
100481 |
367957 |
657843 |
114 |
|||
104059 |
358610 |
667059 |
114 |
|||
104997 |
365530 |
660355 |
113 |
|||
101502 |
368955 |
661246 |
113 |
|||
101190 |
369087 |
660800 |
113 |
|||
100503 |
368057 |
658733 |
113 |
|||
100528 |
368154 |
658791 |
113 |
|||
101766 |
370293 |
662047 |
113 |
|||
101152 |
368393 |
661015 |
113 |
|||
100588 |
369142 |
658749 |
113 |
|||
104124 |
359865 |
666978 |
113 |
|||
104748 |
358397 |
668385 |
113 |
|||
103796 |
359131 |
666126 |
113 |
|||
100252 |
368154 |
658175 |
112 |
|||
100473 |
367730 |
658232 |
112 |
|||
101692 |
370436 |
661602 |
112 |
|||
100838 |
367913 |
659896 |
112 |
|||
100740 |
366075 |
657862 |
112 |
|||
101046 |
368368 |
660791 |
112 |
|||
100414 |
367687 |
658708 |
112 |
|||
105221 |
358449 |
668109 |
112 |
|||
104622 |
359589 |
668589 |
112 |
|||
104049 |
359367 |
666574 |
112 |
|||
105241 |
358181 |
668050 |
112 |
|||
100516 |
367094 |
658163 |
111 |
|||
101256 |
369353 |
659920 |
111 |
|||
101785 |
370204 |
661984 |
111 |
|||
100543 |
367743 |
659172 |
111 |
|||
100387 |
367065 |
658770 |
111 |
|||
101008 |
368645 |
660007 |
111 |
|||
100943 |
369319 |
658756 |
111 |
|||
104715 |
357277 |
668042 |
111 |
|||
100529 |
368235 |
658737 |
110 |
|||
100264 |
367484 |
658483 |
110 |
|||
101187 |
369340 |
660634 |
110 |
|||
100464 |
368612 |
658962 |
110 |
|||
101178 |
370097 |
660132 |
110 |
|||
101330 |
368910 |
660801 |
110 |
|||
103783 |
358102 |
666559 |
110 |
|||
104530 |
358330 |
668670 |
110 |
|||
105222 |
358368 |
668165 |
110 |
|||
104206 |
359614 |
667243 |
110 |
|||
100488 |
367370 |
658223 |
109 |
|||
101249 |
369387 |
660255 |
109 |
|||
100886 |
368269 |
659902 |
109 |
|||
100604 |
366760 |
658379 |
109 |
|||
101291 |
369006 |
660027 |
109 |
|||
100549 |
367839 |
659224 |
109 |
|||
101274 |
369581 |
660367 |
109 |
|||
101268 |
369627 |
659981 |
109 |
|||
103776 |
357509 |
666936 |
109 |
|||
104318 |
359778 |
667855 |
109 |
|||
103728 |
358225 |
666003 |
109 |
|||
103713 |
357043 |
666761 |
109 |
|||
100329 |
367598 |
659501 |
108 |
|||
100453 |
367615 |
659611 |
108 |
|||
100302 |
369614 |
658203 |
108 |
|||
100784 |
368789 |
659689 |
108 |
|||
101769 |
370551 |
661884 |
108 |
|||
100936 |
370292 |
659435 |
108 |
|||
101211 |
369617 |
659869 |
108 |
|||
101876 |
369724 |
662530 |
108 |
|||
101194 |
368756 |
661006 |
108 |
|||
101485 |
368945 |
661131 |
108 |
|||
101463 |
369067 |
661414 |
108 |
|||
104569 |
359364 |
668242 |
108 |
|||
103988 |
359124 |
666846 |
108 |
|||
104015 |
358176 |
667224 |
108 |
|||
100805 |
367619 |
659727 |
107 |
|||
100307 |
369465 |
658428 |
107 |
|||
100402 |
367012 |
659050 |
107 |
|||
100257 |
367749 |
658453 |
107 |
|||
100669 |
367004 |
658107 |
107 |
|||
100489 |
367288 |
658276 |
107 |
|||
104555 |
358601 |
668619 |
107 |
|||
100566 |
366826 |
659979 |
106 |
|||
101458 |
369481 |
661144 |
106 |
|||
100911 |
368122 |
660123 |
106 |
|||
101511 |
369713 |
660759 |
106 |
|||
101543 |
369922 |
660983 |
106 |
|||
100622 |
366264 |
657986 |
106 |
|||
104186 |
358925 |
667451 |
106 |
|||
103688 |
357223 |
666760 |
106 |
|||
104688 |
359972 |
668806 |
106 |
|||
101277 |
369328 |
660530 |
105 |
|||
101468 |
368727 |
661630 |
105 |
|||
101584 |
369103 |
661748 |
105 |
|||
100309 |
369298 |
658527 |
105 |
|||
100475 |
367897 |
658123 |
105 |
|||
100390 |
367334 |
658721 |
105 |
|||
100456 |
368034 |
659342 |
105 |
|||
104286 |
359668 |
667688 |
105 |
|||
104012 |
357922 |
667382 |
105 |
|||
104566 |
359113 |
668404 |
105 |
|||
100523 |
367731 |
659060 |
104 |
|||
100712 |
369693 |
658872 |
104 |
|||
103795 |
359223 |
666075 |
104 |
|||
104048 |
359450 |
666522 |
104 |
|||
104187 |
358841 |
667506 |
104 |
|||
103948 |
359247 |
666297 |
104 |
|||
104372 |
359955 |
667863 |
104 |
|||
100548 |
367917 |
659172 |
103 |
|||
101457 |
369567 |
661088 |
103 |
|||
101527 |
369476 |
661028 |
103 |
|||
100276 |
369593 |
657981 |
103 |
|||
100296 |
369197 |
658474 |
103 |
|||
104058 |
358692 |
667004 |
103 |
|||
104185 |
359003 |
667397 |
103 |
|||
103693 |
356805 |
667038 |
103 |
|||
103736 |
358840 |
665855 |
103 |
|||
103666 |
357390 |
666770 |
103 |
|||
104259 |
359742 |
667521 |
103 |
|||
104571 |
359533 |
668139 |
103 |
|||
100308 |
369375 |
658477 |
102 |
|||
101162 |
368322 |
661180 |
102 |
|||
101055 |
367648 |
660778 |
102 |
|||
104260 |
359821 |
667473 |
102 |
|||
104208 |
359449 |
667352 |
102 |
|||
104116 |
358222 |
667667 |
102 |
|||
104077 |
359221 |
666907 |
102 |
|||
104069 |
357857 |
667558 |
102 |
|||
101247 |
369558 |
660141 |
101 |
|||
100234 |
368525 |
658075 |
101 |
|||
100618 |
366768 |
658489 |
101 |
|||
100211 |
368667 |
657743 |
101 |
|||
104224 |
359965 |
667141 |
101 |
|||
101137 |
368634 |
660738 |
100 |
|||
100691 |
366974 |
657887 |
100 |
|||
100987 |
367795 |
660450 |
100 |
|||
101573 |
370027 |
661152 |
100 |
|||
100370 |
367602 |
658667 |
100 |
|||
101711 |
369917 |
661815 |
100 |
|||
101783 |
370376 |
661874 |
100 |
|||
101506 |
369296 |
661030 |
100 |
|||
104639 |
359084 |
669015 |
100 |
|||
104098 |
359653 |
666746 |
100 |
|||
104100 |
359486 |
666853 |
100 |
|||
104256 |
359643 |
667471 |
100 |
|||
104126 |
359690 |
667080 |
100 |
|||
100596 |
369809 |
658319 |
99 |
|||
100581 |
367611 |
657952 |
99 |
|||
100602 |
369572 |
658592 |
99 |
|||
100984 |
368767 |
660290 |
99 |
|||
101123 |
368718 |
659855 |
99 |
|||
100773 |
367901 |
659779 |
99 |
|||
101262 |
369283 |
660083 |
99 |
|||
105223 |
358280 |
668220 |
99 |
|||
100552 |
367671 |
659336 |
98 |
|||
101337 |
368599 |
661240 |
98 |
|||
100702 |
366560 |
658256 |
98 |
|||
101139 |
368668 |
661071 |
98 |
|||
100767 |
368406 |
659461 |
98 |
|||
100828 |
368755 |
659354 |
98 |
|||
100595 |
369727 |
658373 |
98 |
|||
104570 |
359450 |
668186 |
98 |
|||
104159 |
359101 |
667462 |
98 |
|||
104109 |
358812 |
667287 |
98 |
|||
105209 |
358465 |
668234 |
98 |
|||
100231 |
367214 |
658441 |
97 |
|||
101626 |
370124 |
661211 |
97 |
|||
101300 |
370099 |
660278 |
97 |
|||
101595 |
369930 |
661094 |
97 |
|||
101218 |
370051 |
659721 |
97 |
|||
100619 |
366515 |
657819 |
97 |
|||
101202 |
368272 |
660734 |
97 |
|||
100636 |
368164 |
658902 |
97 |
|||
100395 |
366915 |
658988 |
97 |
|||
100647 |
366718 |
657946 |
97 |
|||
100839 |
367995 |
659843 |
97 |
|||
101223 |
369257 |
659863 |
97 |
|||
101508 |
369447 |
660922 |
97 |
|||
104363 |
359967 |
667974 |
97 |
|||
100733 |
369846 |
658653 |
96 |
|||
100594 |
369642 |
658429 |
96 |
|||
101594 |
369844 |
661148 |
96 |
|||
101641 |
369723 |
661699 |
96 |
|||
101510 |
369631 |
660813 |
96 |
|||
104072 |
359640 |
666622 |
96 |
|||
103999 |
358203 |
667444 |
96 |
|||
104548 |
359101 |
668283 |
96 |
|||
104728 |
358489 |
668451 |
96 |
|||
104225 |
359881 |
667201 |
96 |
|||
101142 |
368417 |
661238 |
95 |
|||
100651 |
366458 |
658097 |
95 |
|||
100708 |
366057 |
658577 |
95 |
|||
101132 |
368294 |
660955 |
95 |
|||
100737 |
366254 |
657870 |
95 |
|||
104986 |
365773 |
660082 |
95 |
|||
100314 |
368691 |
658798 |
95 |
|||
101275 |
369495 |
660423 |
95 |
|||
100434 |
366722 |
659710 |
95 |
|||
101784 |
370288 |
661924 |
95 |
|||
105243 |
357996 |
668052 |
95 |
|||
103772 |
357177 |
667155 |
95 |
|||
104182 |
359260 |
667242 |
95 |
|||
100479 |
368043 |
657786 |
94 |
|||
100638 |
368319 |
658814 |
94 |
|||
100510 |
367591 |
657839 |
94 |
|||
100522 |
367647 |
659115 |
94 |
|||
100891 |
367851 |
660171 |
94 |
|||
101891 |
371084 |
661780 |
94 |
|||
100915 |
367784 |
660337 |
94 |
|||
100436 |
366707 |
659597 |
94 |
|||
101575 |
369858 |
661259 |
94 |
|||
101379 |
370907 |
660913 |
94 |
|||
104394 |
360069 |
668151 |
94 |
|||
104543 |
359341 |
668020 |
94 |
|||
104056 |
358863 |
666899 |
94 |
|||
104439 |
360352 |
668202 |
94 |
|||
100242 |
368292 |
658224 |
93 |
|||
104957 |
365412 |
660076 |
93 |
|||
100451 |
367441 |
659729 |
93 |
|||
100393 |
367083 |
658878 |
93 |
|||
101362 |
370941 |
660446 |
93 |
|||
100855 |
368844 |
659409 |
93 |
|||
101819 |
370819 |
661830 |
93 |
|||
101466 |
368897 |
661519 |
93 |
|||
101645 |
370061 |
661481 |
93 |
|||
101512 |
369798 |
660705 |
93 |
|||
101073 |
369481 |
660310 |
93 |
|||
104529 |
358162 |
667942 |
93 |
|||
104180 |
359427 |
667123 |
93 |
|||
104575 |
359385 |
668353 |
93 |
|||
104111 |
358673 |
667404 |
93 |
|||
104687 |
360050 |
668749 |
93 |
|||
103715 |
357212 |
666652 |
93 |
|||
103879 |
359153 |
666241 |
93 |
|||
101189 |
369175 |
660747 |
92 |
|||
100392 |
367170 |
658829 |
92 |
|||
100323 |
367935 |
659293 |
92 |
|||
101455 |
369738 |
660980 |
92 |
|||
101228 |
369150 |
659693 |
92 |
|||
100914 |
367864 |
660285 |
92 |
|||
104991 |
365356 |
660351 |
92 |
|||
101077 |
369149 |
660527 |
92 |
|||
101545 |
369747 |
661088 |
92 |
|||
104500 |
361816 |
667618 |
92 |
|||
103672 |
356902 |
667097 |
92 |
|||
100666 |
366527 |
657920 |
91 |
|||
100290 |
368212 |
658514 |
91 |
|||
100703 |
366483 |
658316 |
91 |
|||
100734 |
369759 |
658709 |
91 |
|||
101770 |
370638 |
661825 |
91 |
|||
100553 |
367593 |
659392 |
91 |
|||
100212 |
368583 |
657800 |
91 |
|||
101258 |
369187 |
660029 |
91 |
|||
101285 |
369329 |
659695 |
91 |
|||
100781 |
369034 |
659529 |
91 |
|||
100747 |
369834 |
658541 |
91 |
|||
100742 |
365872 |
657864 |
91 |
|||
104290 |
359329 |
667906 |
91 |
|||
104727 |
358406 |
668505 |
91 |
|||
104528 |
358254 |
667889 |
91 |
|||
104011 |
357841 |
667455 |
91 |
|||
104583 |
358707 |
668781 |
91 |
|||
104184 |
359092 |
667349 |
91 |
|||
100649 |
366540 |
658044 |
90 |
|||
101323 |
370556 |
660216 |
90 |
|||
100222 |
367972 |
657956 |
90 |
|||
101572 |
370112 |
661098 |
90 |
|||
100204 |
368349 |
658068 |
90 |
|||
100364 |
368074 |
658111 |
90 |
|||
101779 |
370712 |
661661 |
90 |
|||
100461 |
368260 |
658952 |
90 |
|||
100598 |
369736 |
658484 |
90 |
|||
101698 |
369932 |
661929 |
90 |
|||
100541 |
367577 |
659279 |
90 |
|||
100633 |
367995 |
659010 |
90 |
|||
104545 |
359355 |
668131 |
90 |
|||
104685 |
360218 |
668643 |
90 |
|||
104693 |
359546 |
669072 |
90 |
|||
103697 |
356475 |
667251 |
90 |
|||
104151 |
358321 |
667722 |
90 |
|||
103777 |
357596 |
666883 |
90 |
|||
100256 |
367839 |
658396 |
89 |
|||
101167 |
369858 |
659595 |
89 |
|||
100517 |
367013 |
658216 |
89 |
|||
100788 |
368561 |
659242 |
89 |
|||
101843 |
370647 |
661942 |
89 |
|||
100780 |
369125 |
659473 |
89 |
|||
100272 |
369605 |
658093 |
89 |
|||
104141 |
359078 |
667233 |
89 |
|||
104678 |
360065 |
668860 |
89 |
|||
104183 |
359172 |
667291 |
89 |
|||
104054 |
359031 |
666790 |
89 |
|||
104287 |
359586 |
667743 |
89 |
|||
105242 |
358082 |
668000 |
89 |
|||
104747 |
358478 |
668335 |
89 |
|||
100275 |
369506 |
658036 |
88 |
|||
100617 |
366687 |
658542 |
88 |
|||
100577 |
367274 |
658163 |
88 |
|||
101197 |
369844 |
659486 |
88 |
|||
100621 |
366353 |
657928 |
88 |
|||
100209 |
368764 |
657805 |
88 |
|||
100641 |
368885 |
658917 |
88 |
|||
100736 |
369669 |
658769 |
88 |
|||
101722 |
370122 |
662042 |
88 |
|||
104629 |
359846 |
668525 |
88 |
|||
104177 |
359682 |
666970 |
88 |
|||
104293 |
359402 |
667739 |
88 |
|||
103716 |
357291 |
666604 |
88 |
|||
104189 |
358668 |
667625 |
88 |
|||
104615 |
358998 |
668958 |
88 |
|||
104572 |
359622 |
668190 |
88 |
|||
104036 |
358765 |
666844 |
88 |
|||
100678 |
366235 |
658590 |
87 |
|||
100885 |
368355 |
659849 |
87 |
|||
100376 |
366465 |
659030 |
87 |
|||
100483 |
367793 |
657952 |
87 |
|||
101113 |
369456 |
659368 |
87 |
|||
100872 |
369812 |
659149 |
87 |
|||
101900 |
370326 |
662266 |
87 |
|||
100574 |
367020 |
658325 |
87 |
|||
100362 |
367906 |
658238 |
87 |
|||
100500 |
367886 |
658845 |
87 |
|||
101608 |
369040 |
662023 |
87 |
|||
104646 |
359439 |
668905 |
87 |
|||
104643 |
359186 |
669072 |
87 |
|||
103780 |
357866 |
666734 |
87 |
|||
103773 |
357260 |
667098 |
87 |
|||
105219 |
358617 |
668007 |
87 |
|||
104371 |
359871 |
667917 |
87 |
|||
101762 |
370043 |
662209 |
86 |
|||
101057 |
367660 |
660889 |
86 |
|||
101745 |
370279 |
661823 |
86 |
|||
101367 |
370605 |
660664 |
86 |
|||
100642 |
367151 |
657773 |
86 |
|||
101048 |
368200 |
660900 |
86 |
|||
101772 |
370805 |
661722 |
86 |
|||
101327 |
370399 |
660436 |
86 |
|||
100893 |
367701 |
660272 |
86 |
|||
100890 |
367935 |
660120 |
86 |
|||
101164 |
368488 |
661071 |
86 |
|||
101168 |
369775 |
659650 |
86 |
|||
100345 |
367225 |
658554 |
86 |
|||
100319 |
368182 |
659122 |
86 |
|||
103893 |
358060 |
666947 |
86 |
|||
104738 |
359248 |
667963 |
86 |
|||
104227 |
359717 |
667297 |
86 |
|||
104549 |
359015 |
668344 |
86 |
|||
104581 |
358882 |
668672 |
86 |
|||
103752 |
357741 |
666555 |
86 |
|||
|
|
|
|
|||
NOTE: Grid references reported in projection UTM, WGS84, Zone 30N.
APPENDIX 4
JORC Table 1, Section 1 - Sampling Techniques and Data
Criteria |
JORC Code Explanation |
Commentary |
Sampling techniques |
· Nature and quality of sampling (eg cut channels, random chips, or specific specialised industry standard measurement tools appropriate to the minerals under investigation, such as down hole gamma sondes, or handheld XRF instruments, etc). These examples should not be taken as limiting the broad meaning of sampling. · Include reference to measures taken to ensure sample representivity and the appropriate calibration of any measurement tools or systems used. · Aspects of the determination of mineralisation that are Material to the Public Report. In cases where 'industry standard' work has been done this would be relatively simple (eg 'reverse circulation drilling was used to obtain 1 m samples from which 3 kg was pulverised to produce a 30 g charge for fire assay'). In other cases more explanation may be required, such as where there is coarse gold that has inherent sampling problems. Unusual commodities or mineralisation types (eg submarine nodules) may warrant disclosure of detailed information. |
· Drilling is not being reported in this announcement. · Soil sampling was undertaken on 100m x 100m spaced grid using hand tools, where a 2kg sample is taken from the soil B-horizon at each sample site at a depth of approximately 30cm. Each soil sample is dry sieved to -160 micron at site, homogenised ahead of a 100g representative split being sent for analysis in individually labelled bags. · Soil geochemical analysis is undertaken at Atlantic Lithium's Mankessim facility in · 5% QAQC samples were inserted into the soil sample stream in the form of field duplicates, blank samples and appropriate certified reference material. · Rock-chip samples were collected during reconnaissance mapping at the discretion of the geologist, consisting of variably weathered outcrop or float. Approximately 1-2 kg of rock-chip material was sampled and submitted to Intertek Tarkwa for sample prep and forwarded to Intertek Perth for analysis using 4A-Li/MS48. · Visual estimates of spodumene have been reported for the spodumene pegmatite float samples discovered in the Rubino licence. |
Drilling techniques |
· Drill type (eg core, reverse circulation, open-hole hammer, rotary air blast, auger, Bangka, sonic, etc) and details (eg core diameter, triple or standard tube, depth of diamond tails, face-sampling bit or other type, whether core is oriented and if so, by what method, etc).
|
· Drilling is not being reported in this announcement. |
Drill sample recovery |
· Method of recording and assessing core and chip sample recoveries and results assessed. · Measures taken to maximise sample recovery and ensure representative nature of the samples. · Whether a relationship exists between sample recovery and grade and whether sample bias may have occurred due to preferential loss/gain of fine/coarse material. |
· Drilling is not being reported in this announcement. · Not applicable to soil sampling programmes. · Recoveries of rock-chip samples is not relevant and results are only used for reconnaissance exploration assessment and will not be used to support mineral resource estimates. |
Logging |
· Whether core and chip samples have been geologically and geotechnically logged to a level of detail to support appropriate Mineral Resource estimation, mining studies and metallurgical studies. · Whether logging is qualitative or quantitative in nature. Core (or costean, channel, etc) photography. · The total length and percentage of the relevant intersections logged. |
· Drilling is not being reported in this announcement. · All rock-chip samples have been lithologically logged and photographed to a suitable standard to support reconnaissance level exploration. · Visual estimates of spodumene have been reported for the spodumene pegmatite float samples discovered in the Rubino licence. The hand samples have been photographed and the modal abundance of spodumene on the surface estimated visually using a percent abundance estimation chart. |
Sub-sampling techniques and sample preparation |
· If core, whether cut or sawn and whether quarter, half or all core taken. · If non-core, whether riffled, tube sampled, rotary split, etc and whether sampled wet or dry. · For all sample types, the nature, quality and appropriateness of the sample preparation technique. · Quality control procedures adopted for all sub-sampling stages to maximise representivity of samples. · Measures taken to ensure that the sampling is representative of the in situ material collected, including for instance results for field duplicate/second-half sampling. · Whether sample sizes are appropriate to the grain size of the material being sampled. |
· Drilling is not being reported in this announcement. · Intertek have followed standard procedures for sample preparation to produce sub-samples for analysis. Khaleesi Resources personnel followed soil sample preparation procedures to produce a sub-sample for analysis. · Field duplicates of soil samples were collected in the field and submitted for analysis as part of QA/QC. |
Quality of assay data and laboratory tests |
· The nature, quality and appropriateness of the assaying and laboratory procedures used and whether the technique is considered partial or total. · For geophysical tools, spectrometers, handheld XRF instruments, etc, the parameters used in determining the analysis including instrument make and model, reading times, calibrations factors applied and their derivation, etc. · Nature of quality control procedures adopted (eg standards, blanks, duplicates, external laboratory checks) and whether acceptable levels of accuracy (ie lack of bias) and precision have been established. |
· CP considers laboratory procedures and assaying are appropriate for the type of samples. · Assaying of the rock-chip samples was undertaken by Intertek Perth using their 4A-Li/MS48 analysis technique. The soil samples were assayed in-house at Atlantic Lithium's Mankessim facility using SciAps Z903 LIBS (Laser induced breakdown spectroscopy) set to · Intertek reported the use of standards and blanks as part of their QA/QC during analysis. Atlantic Lithium use standards as part of their QA/QC during rock-chip analysis. · 5% of soil samples submitted by the Company were standards, blanks and field duplicates. · All QA/QC samples submitted by the Company returned results within acceptable levels of accuracy. |
Verification of sampling and assaying |
· The verification of significant intersections by either independent or alternative company personnel. · The use of twinned holes. · Documentation of primary data, data entry procedures, data verification, data storage (physical and electronic) protocols. · Discuss any adjustment to assay data. |
· All significant assay results reported by Intertek and Atlantic Lithium have been verified by experienced Company personnel. · All primary data has been uploaded into the Company's data storage and data entry standard procedures checked and verified by two experienced Company personnel. · No adjustments to assay data were undertaken. |
Location of data points |
· Accuracy and quality of surveys used to locate drill holes (collar and down-hole surveys), trenches, mine workings and other locations used in Mineral Resource estimation. · Specification of the grid system used. · Quality and adequacy of topographic control. |
· Location of soil sampling and rock chip sampling programme is recorded by hand-held GPS devices with +/_3m accuracy and is considered suitable for reconnaissance exploration. · Co-ordinate data is recorded in WGS84 UTM Z30N. |
Data spacing and distribution |
· Data spacing for reporting of Exploration Results. · Whether the data spacing and distribution is sufficient to establish the degree of geological and grade continuity appropriate for the Mineral Resource and Ore Reserve estimation procedure(s) and classifications applied. · Whether sample compositing has been applied. |
· Soil sample spacing of these results is 100 x 100m. · Not applicable due to reconnaissance nature of this sampling and results are not considered for Mineral Resource classification. |
Orientation of data in relation to geological structure |
· Whether the orientation of sampling achieves unbiased sampling of possible structures and the extent to which this is known, considering the deposit type. · If the relationship between the drilling orientation and the orientation of key mineralised structures is considered to have introduced a sampling bias, this should be assessed and reported if material. |
· Not applicable. · Drilling is not being reported in this announcement. |
Sample security |
· The measures taken to ensure sample security. |
· The sample chain of custody is managed by Khaleesi Resources and Atlantic Lithium. The samples are collected in the field by Khaleesi Resources personnel in unique number coded plastic bags and labelled polyweave sacks. All samples are delivered directly to Intertek by Khaleesi Resources personnel. Rock-chip samples are prepared by Intertek in Tarkwa and pulp is securely shipped to |
Audits or reviews |
· The results of any audits or reviews of sampling techniques and data. |
· No review of the sampling techniques has been undertaken. The soil assay data will be reviewed internally by the geological team once all the results are received. |
JORC Table 1, Section 2 - Reporting of Exploration Results
Criteria |
JORC Code Explanation |
Commentary |
Mineral tenement and land tenure status |
· Type, reference name/number, location and ownership including agreements or material issues with third parties such as joint ventures, partnerships, overriding royalties, native title interests, historical sites, wilderness or national park and environmental settings. · The security of the tenure held at the time of reporting along with any known impediments to obtaining a licence to operate in the area. |
· PR 0694 is located in the Department of Agboville and PR 0695 is in the Departments of Agboville and Adzope, Côte d'Ivoire. All permits are owned 100% by Khaleesi Resources SARL, a wholly-owned subsidiary of · The permits are in good standing and the Company is not aware of any existing or potential impediments which may impact ongoing exploration activities. |
Exploration done by other parties |
· Acknowledgment and appraisal of exploration by other parties. |
· No systematic modern exploration for lithium-caesium-tantalum pegmatites have been undertaken over the area. No records of other systematic exploration over the tenement areas have been found. · Government 1:200,000 scale geological mapping and historical mineral occurrence evaluations have been undertaken over the area at various times since the 1960s. |
Geology |
· Deposit type, geological setting and style of mineralisation. |
· Potential for lithium-caesium-tantalum bearing pegmatite mineralisation. The area is underlain by Birimian-aged metasediments with granitic intrusives of the Eburnean orogeny which can host LCT pegmatite deposits similar to those discovered in |
Drill hole information |
· A summary of all information material to the under-standing of the exploration results including a tabulation of the following information for all Material drill holes: · easting and northing of the drill hole collar · elevation or RL (Reduced Level - elevation above sea level in metres) of the drill hole collar · dip and azimuth of the hole · down hole length and interception depth · hole length · If the exclusion of this information is justified on the basis that the information is not Material and this exclusion does not detract from the understanding of the report, the Competent Person should clearly explain why this is the case. |
· No drilling is being reported. |
Data aggregation methods |
· In reporting Exploration Results, weighting averaging techniques, maximum and/or minimum grade truncations (e.g. cutting of high grades) and cut-off grades are usually Material and should be stated. · Where aggregate intercepts incorporate short lengths of high grade results and longer lengths of low grade results, the procedure used for such aggregation should be stated and some typical examples of such aggregations should be shown in detail. · The assumptions used for any reporting of metal equivalent values should be clearly stated. |
· Not applicable. |
Relationship between mineralisation widths and intercept lengths |
· These relationships are particularly important in the reporting of Exploration Results. · If the geometry of the mineralisation with respect to the drill hole angle is known, its nature should be reported. · If it is not known and only the down hole lengths are reported, there should be a clear statement to this effect (e.g. 'down hole length, true width not known'). |
· Not applicable. |
Diagrams |
· Appropriate maps and sections (with scales) and tabulations of intercepts should be included for any significant discovery being reported. These should include, but not be limited to a plan view of drill hole collar locations and appropriate sectional views. |
· Maps are included in the body of the announcement. |
Balanced Reporting |
· Accuracy and quality of surveys used to locate drill holes (collar and down-hole surveys), trenches, mine workings and other locations used in Mineral Resource estimation. · Where comprehensive reporting of all Exploration Results is not practicable, representative reporting of both low and high grades and/or widths should be practiced to avoid misleading reporting of Exploration Results. |
· All meaningful exploration data has been included in the body of this announcement. |
Other substantive exploration data |
· Other exploration data, if meaningful and material, should be reported including (but not limited to): geological observations; geophysical survey results; geochemical survey results; bulk samples - size and method of treatment; metallurgical test results; bulk density, groundwater, geotechnical and rock characteristics; potential deleterious or contaminating substances. |
· Li grid heat map was created using: · MapInfo Discover (Version 2023, Release Build 142) Heatmap · Heatmap settings: Style set at standard; area of influence set to 0 · Grid cell size 25m x 25m |
Further work |
· The nature and scale of planned further work (e.g. tests for lateral extensions or depth extensions or large- scale step-out drilling). · Diagrams clearly highlighting the areas of possible extensions, including the main geological interpretations and future drilling areas, provided this information is not commercially sensitive. |
· The Company is planning further mapping and soil geochemical sampling programmes to further assess the potential for lithium-bearing pegmatites within the licences. Auger drilling and possibly trenching will be used to define pegmatite targets below laterite cover. |
RNS may use your IP address to confirm compliance with the terms and conditions, to analyse how you engage with the information contained in this communication, and to share such analysis on an anonymised basis with others as part of our commercial services. For further information about how RNS and the London Stock Exchange use the personal data you provide us, please see our Privacy Policy.
